ドライキャビネット

ドライキャビネット
(ファブファインダー)

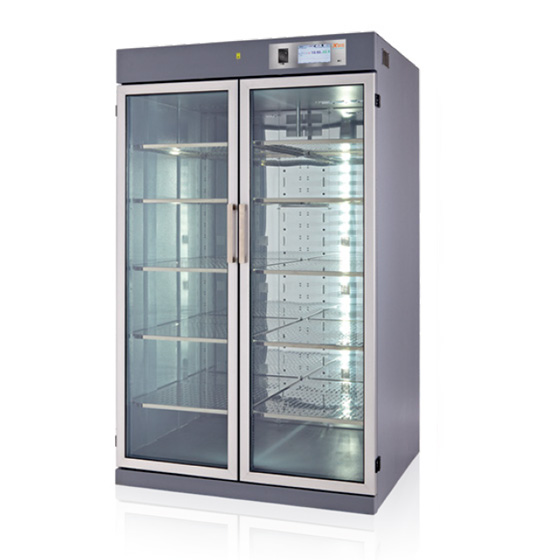

XL Line (1840 lt)

XL Line (1840 lt)

External Dimensions (W x H x D)
Internal Dimensions (W x H x D) Non Insulated
1197 x 1654 x 930 mm
Insulated
1178 x 1634 x 930 mm
Net Volume Non Insulated
1840 It
Insulated
1790 It
Weight* 280 Kg
Average Power Consumption 50W / hour
*Depends on configuration
XT Line (1250 lt)

XT Line (1250 lt)

External Dimensions (W x H x D) 1200 x 1990 x 750 mm
Internal Dimensions (W x H x D) Non Insulated
1197 x 1654 x 930 mm
Insulated
1178 x 1634 x 930 mm
Net Volume Non Insulated
1250 It
Insulated
1215 It
Weight* 190 Kg
Average Power Consumption 50W / hour
*Depends on configuration

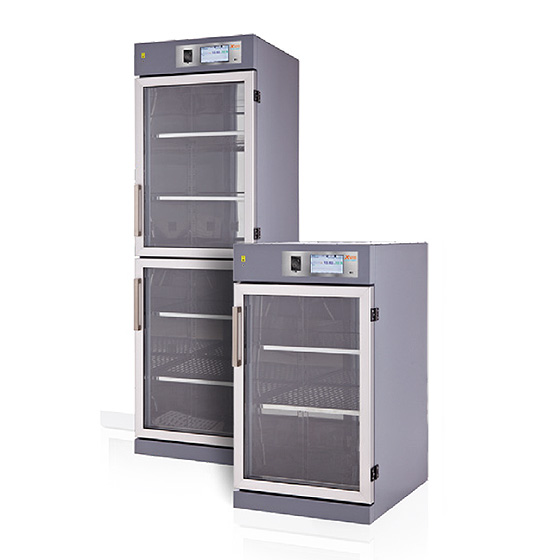

XS Line (300-600-900 lt)

XS Line (300-600-900 lt)

External Dimensions (W x H x D)
XS Line Cabinets XS-300
XS-600
XS-900
606 x 1128 x 750 mm
606 x 1990 x 750 mm
606 x 1990 x 1050 mm
Internal Dimensions (W x H x D) Non Insulated Insulated
XS Line Cabinets XS-300
XS-600
XS-900
603 x 792 x 630 mm
603 x 1654 x 630 mm
603 x 1654 x 930 mm
584 x 772 x 630 mm
584 x 1634 x 630 mm
584 x 1634 x930 mm
Net Volume Non Insulated Insulated
XS Line Cabinets XS-300
XS-600
XS-900
300 It
625 It
925 It
285 It
600 It
890 It
Weight*
XS Line Cabinets XS-300
XS-600
XS-900
90 Kg
134 Kg
160 Kg
Average Power Consumption 50W / hour
*Depends on configuration
